Expert Review of the Cioks Sol Power Supply
The Cioks Sol stands out as an exceptionally compact yet powerful solution for pedalboard power needs, boasting five isolated outputs with customizable voltage options and a proprietary cabling system that simplifies powering high-demand pedals. Its lightweight design and slim profile make it an ideal choice for portable setups, studio environments, or even desktop configurations in rental spaces. While primarily suited for stationary use, its portability and efficiency make it a versatile addition to any guitarist’s arsenal.
Advantages and Highlights
- Compact and lightweight construction enhances portability
- Multiple switchable voltage outputs for flexible power options
- Eliminates the need for bulky wall warts, requiring only a standard IEC power cable
Potential Drawbacks
- Proprietary power cables may require additional clearance space
- Size and mounting options might pose challenges for very small pedalboards
Testing Methodology and Reliability
At Guitar World, our team of seasoned reviewers dedicates extensive hours testing gear to ensure you receive honest, comprehensive insights. We evaluate products based on performance, build quality, usability, and value, providing you with well-rounded recommendations. Learn more about our testing process here.
Understanding the Cioks Sol: Features and Functionality

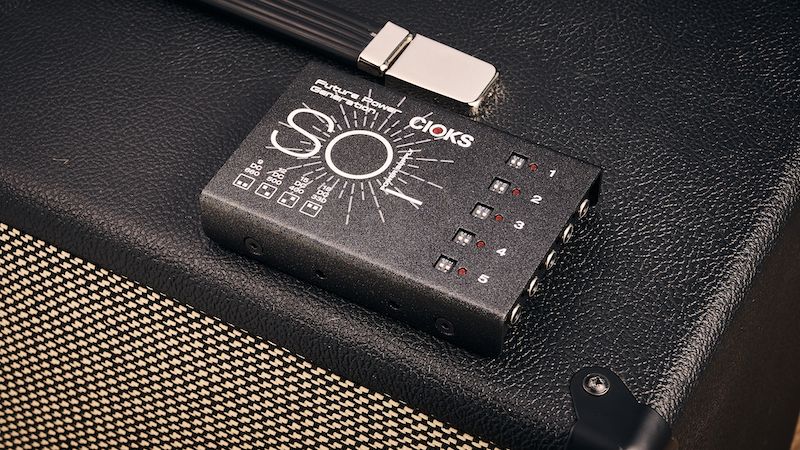

What Is the Cioks Sol?
As an avid pedalboard enthusiast, I often find myself juggling multiple effects and power sources. For those who prefer smaller, more manageable setups without sacrificing power, the Cioks Sol offers an excellent solution. Designed as a dedicated pedalboard power supply, it features five isolated outputs capable of delivering various DC voltages-9V, 12V, 15V, and 18V-simply toggled via top-mounted dip switches. Each outlet can supply up to 660mA, ensuring even digital pedals with high current demands are adequately powered.
Part of Cioks’ innovative Future Power Generation series launched in 2017, the Sol replaces traditional linear power supplies with a modern switch-mode power supply (SMPS) design, offering increased efficiency and reduced size.
For those interested in electronics, it’s worth noting that SMPS technology uses high-frequency switching transistors to convert incoming power, resulting in lighter, more efficient units that generate less heat-though they may introduce some high-frequency noise, which is generally manageable in guitar applications.
Technical Specifications
- Price: $199 / £155 / €150
- Type: Isolated, switch-mode pedalboard power supply
- Outputs: 5 switchable, isolated outlets (9V/660mA, 12V/500mA, 15V/400mA, 18V/330mA)
- Power Input: IEC cable
- Dimensions: 1″ x 5.2″ x 3.5″
- Weight: 410 grams / 0.9 pounds
- Manufacturer: Cioks
Build Quality and Durability
The Cioks Sol exemplifies robust craftsmanship, encased in a sturdy all-steel housing that ensures durability in various environments. Despite its lightweight profile, it feels substantial and well-made, providing confidence in its longevity. The dip switches for voltage selection are designed for tactile feedback, feeling firm yet accessible, and are recessed enough to prevent accidental adjustments during transport or setup.
The top surface features an overhang that extends beyond the IEC input and output jacks, offering protection against knocks and accidental disconnections. The proprietary RCA connectors used for power outputs are a deliberate design choice, offering superior mechanical and electrical contact compared to standard barrel jacks. This reduces the risk of cable snagging or connector damage, a common issue with traditional power supplies.
Color-coded Flex cables are supplied for each voltage setting, simplifying cable management and reducing the chance of incorrect connections. Overall, the Cioks Sol combines a sleek aesthetic with rugged construction, making it a reliable choice for both studio and live use.
Ease of Use and Practicality
Setting up the Cioks Sol is straightforward, thanks to its user-friendly design. It can be securely Velcroed onto pedalboards or mounted using the included screws, which fit into tapped holes on the sides or bottom for a more permanent installation. During testing, I appreciated the ample clearance provided by the overhanging top, which facilitated cable routing and prevented strain on connectors.
The proprietary RCA power cables are longer than typical barrel connectors, providing extra flexibility in pedalboard layout. This is particularly advantageous when space is limited, as it allows for cleaner cable management and reduces clutter.
One of the standout features is the voltage-switching dip switches, which enable quick adjustments to power different effects or synth modules. This flexibility proved invaluable during my experiments with various setups for recording, live performance, and sound design.
In my own rig, the Sol powered a mix of analog and digital effects, including digital pedals that demand high current. The 660mA headroom at 9V was more than sufficient, ensuring stable operation without noise or stuttering, even with digital effects engaged.
Beyond pedal powering, I also used the Sol as a desktop power source for synthesizers and sound modules, such as the Critter and Guitari Organelle and Omnichord. Its ability to reliably supply different voltages made it a versatile hub for my experimental soundscape projects, with clear labeling and color-coded cables providing peace of mind against miswiring.
Final Thoughts: Is the Cioks Sol Right for You?
In my opinion, the Cioks Sol is an excellent addition to any pedalboard or studio setup, especially for those seeking a compact, durable, and versatile power solution. Its slim profile allows it to fit seamlessly into tight spaces, while its reliable performance ensures your effects and synths receive clean, consistent power. Whether you’re a touring professional, a studio engineer, or a dedicated hobbyist, the Sol offers a practical and high-quality power management option that won’t disappoint.
Other Power Supply Options to Consider
Harley Benton PowerPlant ISO-10AC Pro – $102 / £91
This budget-friendly alternative provides four voltage-switchable outputs and six additional 9V outlets, including two with 500mA capacity, plus a USB port for charging devices. It’s a solid choice for those with modest power needs.
Cioks DC7 – $269 / £215
For larger pedalboards, the DC7 offers seven switchable outputs and a USB port, making it a more comprehensive solution for complex setups requiring multiple power sources.
Walrus Audio Canvas Power 5 – $190 / £185
While slightly less flexible in voltage options, the Canvas Power 5 excels in modularity, allowing you to daisy-chain multiple units for expanded power capacity, ideal for extensive pedal arrays.
